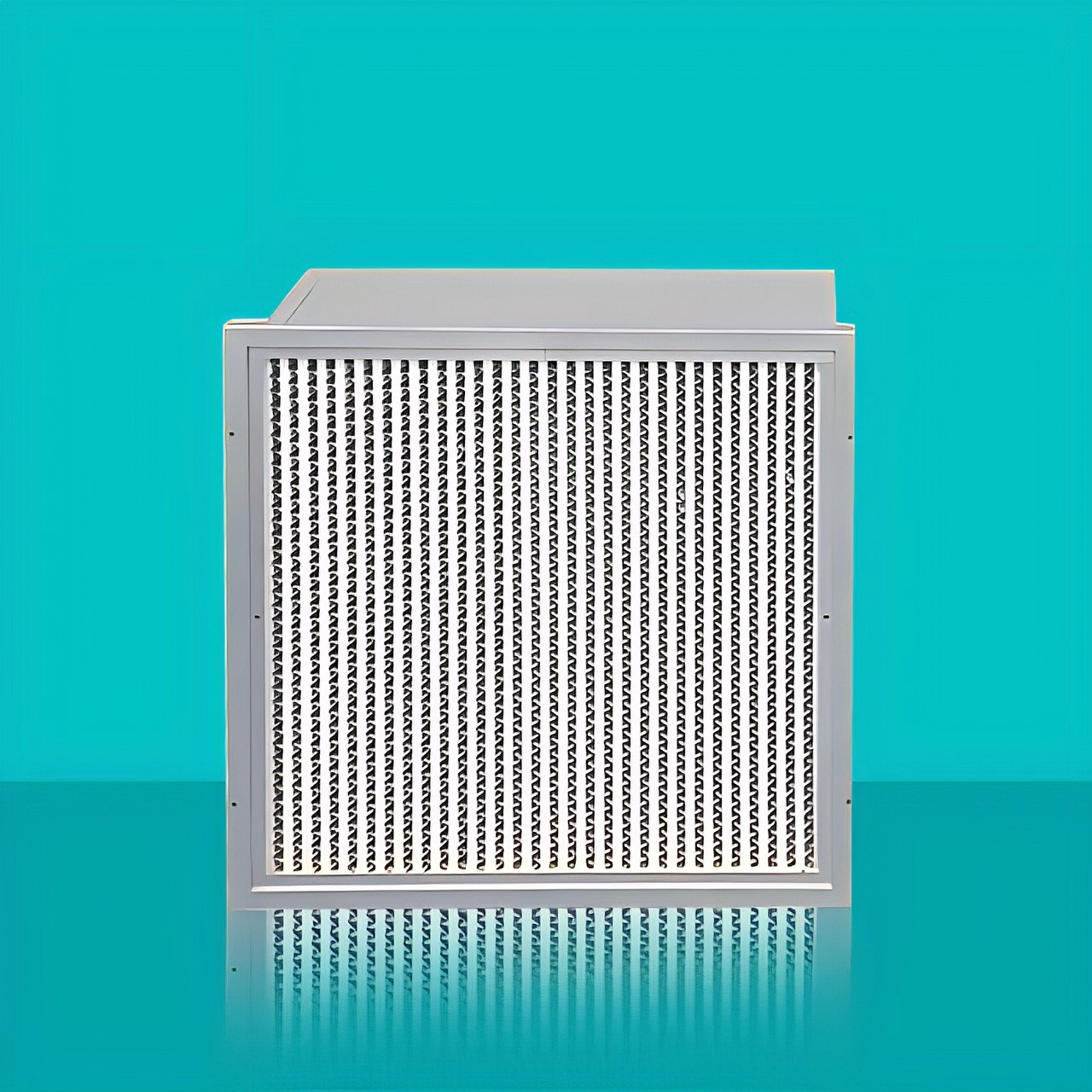

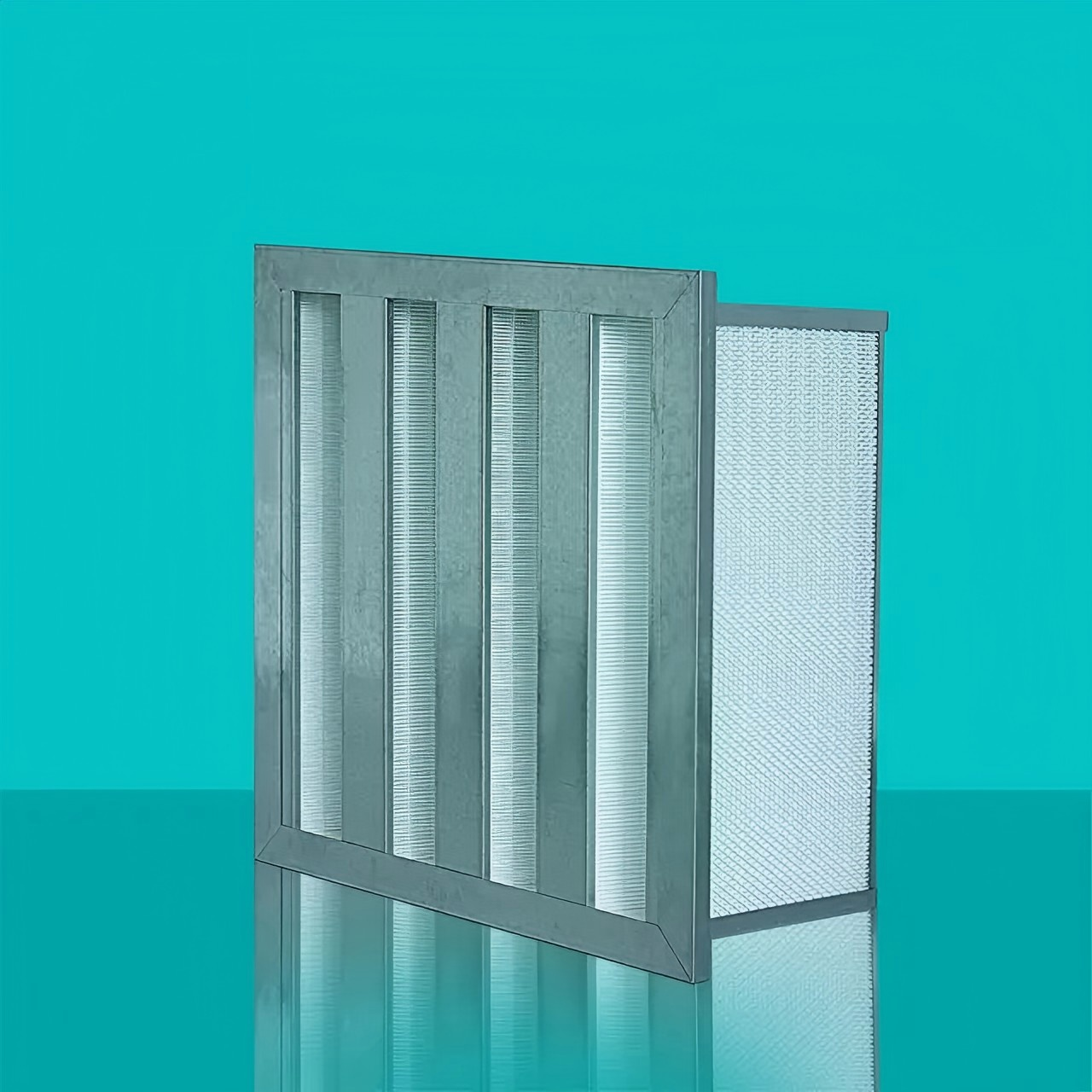

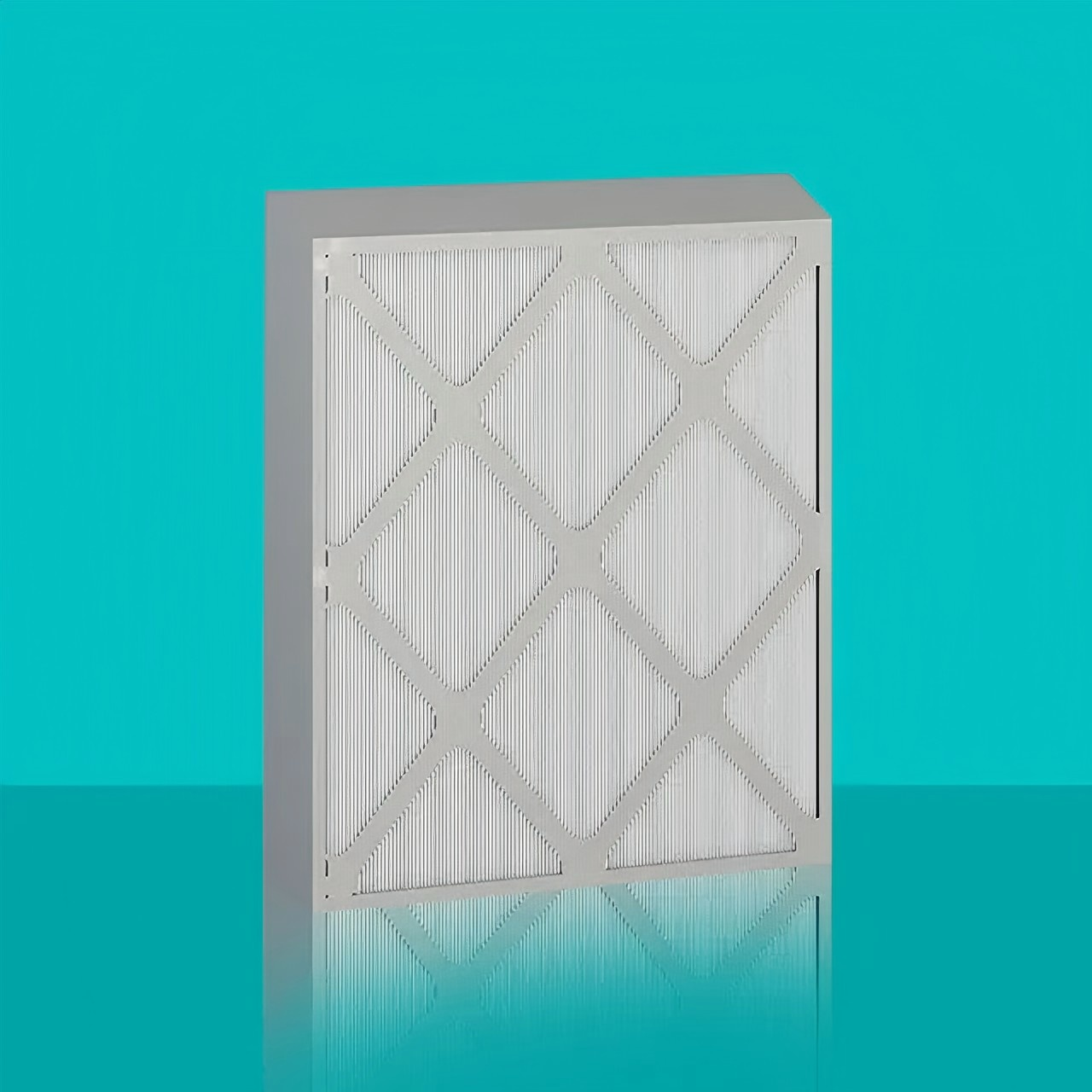

Medium Efficiency Filter

Product features

FeinPak is ideal as a medium-efficiency filter for use in humid, high airflow and high dust  load environments and  is widely  used  in air conditioning ventilation systems for pharmaceutical, automotive, food processing, commercial buildings and other industrial uses.

Compact and lightweight

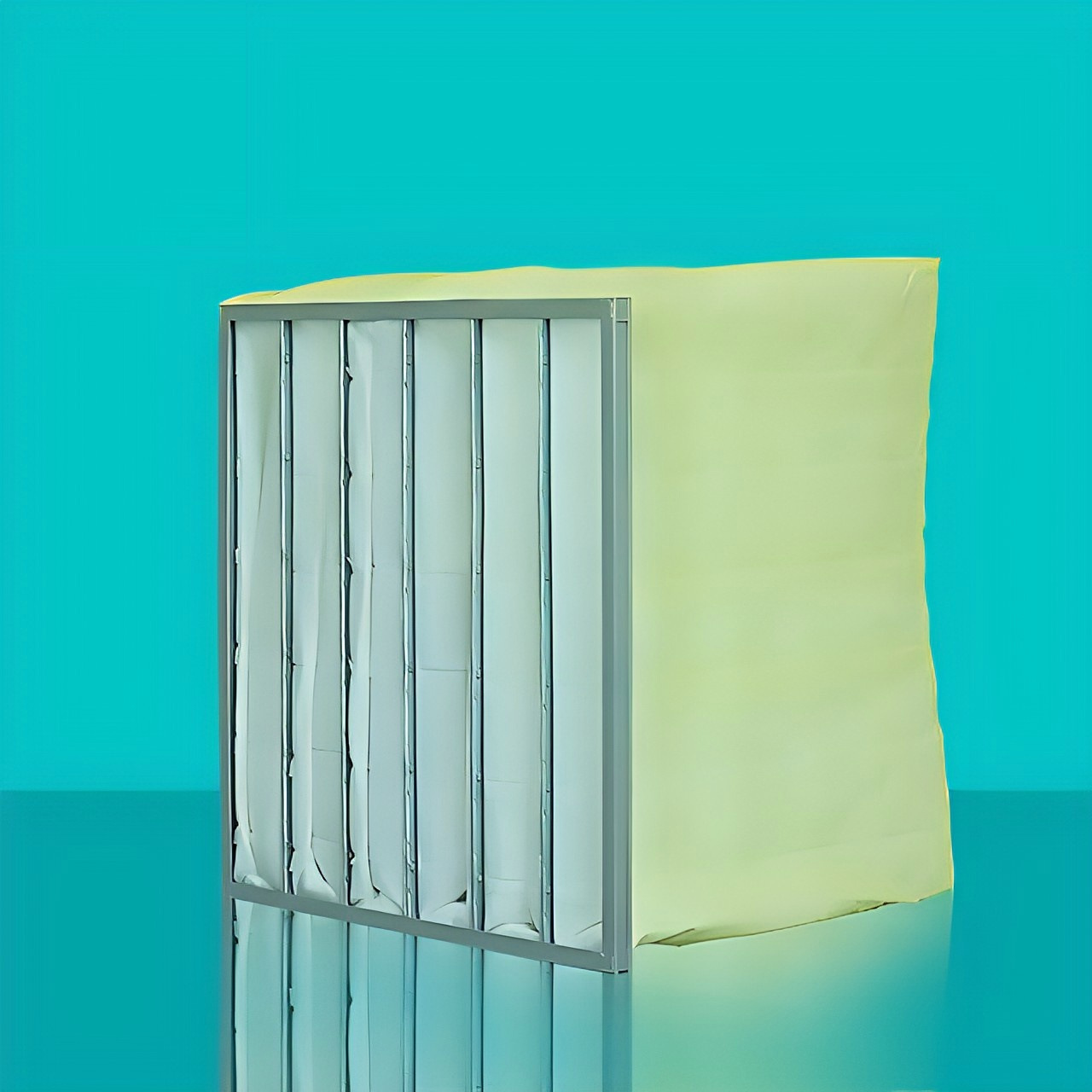

The frame of FeinPak medium-efficiency bag filter can be made of galvanized iron or aluminum  alloy,  supplemented  by  iron  framework  for  bag  support,  which  not  only effectively  supports the  bag  but  also  maximizes the filtration  area. The filter features compact and sturdy structure and easy installation and disassembly.

High-quality  multi-layer  polyester filter  media,  high dust  holding capacity, and  low

resistance.

The high-quality multi-layer polyester synthetic fiber is used, which ensures fluffy air inlet and tight air outlet of the filter, providing a large dust holding capacity while ensuring filtration efficiency. A reasonable number of filter bags increases the filtration area and dust holding capacity, while reducing the resistance.

Specifications

Outer frame Aluminum frame, galvanized frame or plastic frame

Filter media Synthetic fiber filter media

Frame thickness 21/25/46mm

Filtration efficiency M5/M6/F7/F8/F9(EN779)

Fire rating Undergoing UL900 certification

Continuous operating temperature ≤70℃

Suggested final resistance ≤250Pa(M5-M6) ≤450Pa(F7-F9)

Main applicationsPre-filtration of ventilation and air conditioning systems for commercial and industrial use
