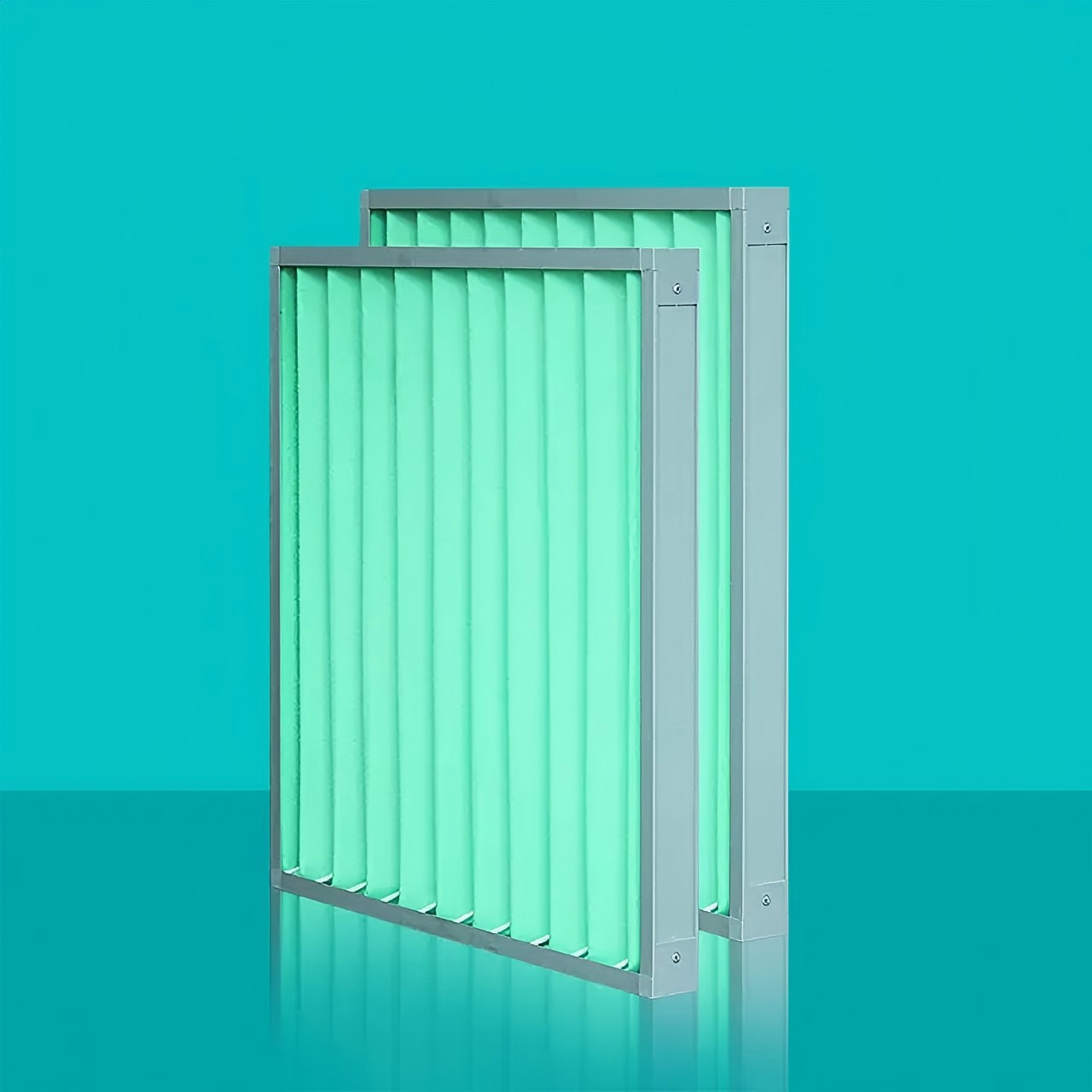

Primary efficiency filter




Product Description:

We manufactures a complete line of air filters, including HEPA, ULPA, medium-efficiency, primary-efficiency, and high temperature-resistant filters. Designed to meet ISO14644-1 and FS209E cleanroom standards, these filters provide particle interception efficiency above 99.997% for 0.3 μm particles. Produced with advanced CNC and automated welding equipment, Cigeair filters guarantee performance, durability, and compliance with ISO9001-2015, CE, and UL certifications. Widely applied in hospitals, pharmaceutical cleanrooms, semiconductor manufacturing, and aerospace industries, Cigeair air filters ensure reliable particle control for the most demanding environments. With a strong reputation as a high-tech enterprise and a council member of the Guangdong Association of Cleanroom Technology, Cigeair continues to deliver innovative filtration solutions that support global healthcare, biotechnology, and advanced manufacturing industries.


Product features

Specifically designed for use in HVAC systems for industrial and commercial use, such as:


1. Ventilation and air conditioning systems for office buildings, conference rooms, hospitals, shopping malls, gymnasiums, airports and other large civil buildings.

2. Centralized HVAC systems for general industrial plants.

3. Pre-filtration of the centralized ventilation and air conditioning systems for cleanrooms.

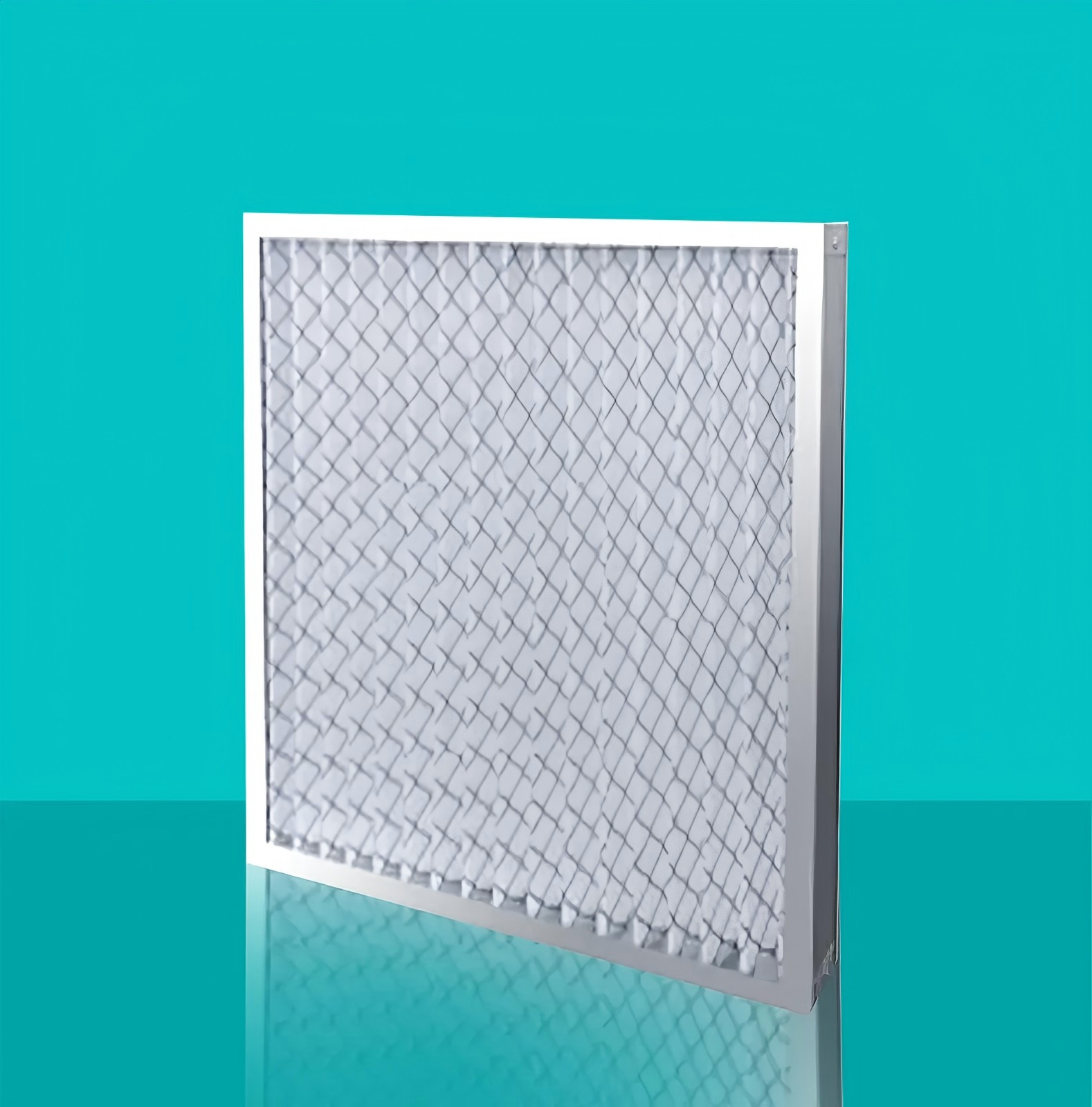

The multi-layer corrugated aluminum mesh structure is designed to achieve a comprehensive filtration effect, which can capture and absorb dust polluting the air through the three-dimensional pleated aluminum mesh filter layer. Besides, the corrugated aluminum mesh has sufficient dust holding space between layers, and features a very high dust holding capacity.


Lightweight plate structure and precision aluminum mesh structure create high dust holding capacity and unique moisture resistance, while also greatly reducing filter replacement and maintenance costs:

1. Reduce filter normal cleaning and maintenance frequency.

2. Greatly reduce the risk of fire.

3. Proficient easy heat dissipation can extend the life of the fan motor.

GroMet can be cleaned and reused by blowing with compressed air. It is also possible to use a solution containing detergent for limited cleaning of the filter for reuse.


初效板式可清洗铝网过滤器GroMet


Specifications

Outer frameAluminum frame (stainless steel frame optional)
Filter mediaCorrugated aluminum mesh
Filtration efficiencyG1-G4
Fire ratingUndergoing UL 900 certification
Continuous operating temperature≤200℃
Main applicationsPre-filtration of ventilation and air conditioning systems for commercial and industrial use
Thickness22/46mm
