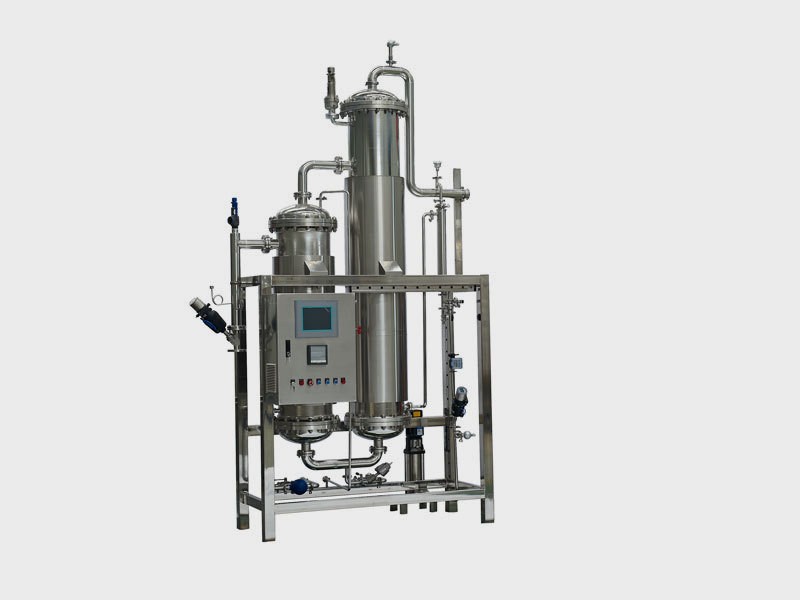

Pure Steam Generator

Pure Steam Generator – Pure Steam Systems for Pharmaceutical Sterilization

We design, manufacture, and validate pure steam generators for pharmaceutical, biotech, and healthcare facilities. Our pure steam systems produce high-quality, pyrogen-free steam for sterilization-in-place and cleanroom humidification.

---

What Is a Pure Steam Generator

A pure steam generator is a specialized distillation device that produces dry, saturated, and chemically pure steam. Unlike industrial steam, pure steam contains no added chemicals, corrosion inhibitors, or volatile impurities. It meets the strict purity requirements of pharmaceutical manufacturing.

---

Key Components of Our Pure Steam Generator

Evaporator Section

· Vertical or horizontal falling film design

· 316L stainless steel construction

· Electropolished internal surfaces

· No moving parts in the steam chamber

Separation Stage

· Three-stage centrifugal separation

· Removes moisture and entrained droplets

· Ensures dryness fraction above 95 percent

· Non-pyrogenic steam quality

Condenser Section

· Tube-in-tube or shell-and-tube design

· Cooling water or purified water feed

· Automatic condensate temperature control

Control System

· PLC-based automation with touchscreen HMI

· Continuous conductivity monitoring

· Automatic drain when quality deviates

· Data logging and alarm history

---

Steam Quality Standards

Our pure steam generators are designed and tested to meet:

· EN 285 – European standard for pure steam

· HTM 2031 – UK health technical memorandum

· USP and EP monographs for pure steam

· ASME BPE for sanitary design

---

Typical Applications

· Sterilization-in-place of bioreactors, fermenters, and holding tanks

· Sterilization of filling lines and product contact surfaces

· Cleanroom humidification without contamination risk

· Autoclave feed for laboratory and production sterilizers

---

Capacity Range

We provide pure steam generators for:

· Small scale: 50 to 500 kilograms per hour for laboratories or pilot plants

· Medium scale: 500 to 2,000 kilograms per hour for production facilities

· Large scale: 2,000 to 10,000 kilograms per hour for large biotech plants

---

Our Turnkey Pure Steam Generator Delivery

We manage your pure steam system from start to finish:

· Steam load calculation and sizing

· Generator selection and skid assembly

· Factory acceptance testing before delivery

· On-site installation and piping connection

· Steam quality testing including dryness, superheat, and non-condensable gases

· IQ, OQ, and PQ validation documentation

· Operator training and technical support

---

Why Choose Our Pure Steam Generator

· Single point of responsibility for the entire pure steam system

· Energy-efficient falling film design

· Consistent steam quality with automatic monitoring

· Compact skid-mounted design for easy installation

· Full validation package for regulatory inspection

---

Conclusion

Our pure steam generators deliver reliable, pyrogen-free steam for your critical sterilization processes – from generator skid to point of use. We provide a complete solution under one contract.
