Effluent Treatment Plant

Effluent Treatment Plant – Turnkey Industrial Wastewater Treatment Systems

We design, build, and commission complete effluent treatment plants for pharmaceutical, chemical, food and beverage, textile, and other industrial facilities. Our ETP solutions treat industrial wastewater to meet local environmental discharge standards or enable water reuse.

---

What Is an Effluent Treatment Plant

An Effluent Treatment Plant, or ETP, is a facility that treats wastewater generated from industrial processes before it is discharged into the environment or recycled back into the facility. It removes suspended solids, organic matter, heavy metals, chemicals, and other pollutants.

---

Key Treatment Stages in Our ETP

Primary Treatment – Physical Separation

· Screening to remove large solids and debris

· Equalization tank to balance flow and composition

· Oil and grease removal using dissolved air flotation or API separators

· Primary clarification for suspended solids settling

· PH neutralization using acid or alkali dosing

Secondary Treatment – Biological Treatment

· Activated sludge process for organic matter removal

· Sequential batch reactor for flexible batch treatment

· Moving bed biofilm reactor for high-strength wastewater

· Aerated lagoons or oxidation ditches for larger volumes

· Secondary clarifier to separate biological solids

Tertiary Treatment – Advanced Polishing

· Multimedia or sand filtration for residual suspended solids

· Activated carbon filtration for dissolved organics

· Ultrafiltration for fine particle and pathogen removal

· Reverse osmosis for high-quality recycled water

· Disinfection with chlorine, UV, or ozone

Sludge Handling

· Sludge thickening using gravity or dissolved air flotation

· Sludge dewatering using filter press or centrifuge

· Dried sludge disposal or incineration

· Optional biogas recovery from anaerobic digestion

---

ETP Standards and Compliance

Our effluent treatment plants are designed to meet:

· Local environmental protection agency discharge limits

· ISO 14001 environmental management standards

· Zero liquid discharge requirements where applicable

· Specific industry effluent standards for pharmaceutical or food sectors

---

Typical Applications We Serve

· Pharmaceutical manufacturing wastewater with high COD and active ingredients

· Food and beverage processing wastewater with organic loads

· Chemical plant effluent with variable PH and dissolved solids

· Textile dyeing and finishing wastewater with color and chemicals

· Dairy and meat processing wastewater with fats and proteins

· Metal finishing and electroplating wastewater with heavy metals

---

Capacity Range

We provide ETP systems for:

· Small scale: 1 to 50 cubic meters per day for small factories or laboratories

· Medium scale: 50 to 500 cubic meters per day for mid-sized manufacturing

· Large scale: 500 to 10,000 cubic meters per day for large industrial complexes

---

Our Turnkey ETP Delivery

We manage your effluent treatment plant from start to finish:

· Wastewater characterization and treatability study

· Process design and technology selection

· Civil works, tank fabrication, and piping installation

· Mechanical and electrical equipment integration

· PLC-based automation and control system

· On-site commissioning and performance testing

· Operator training and environmental compliance documentation

---

Additional Options for Advanced Treatment

Zero Liquid Discharge System

· Brine concentrators and crystallizers

· No liquid waste discharged to environment

· Maximum water recovery for reuse

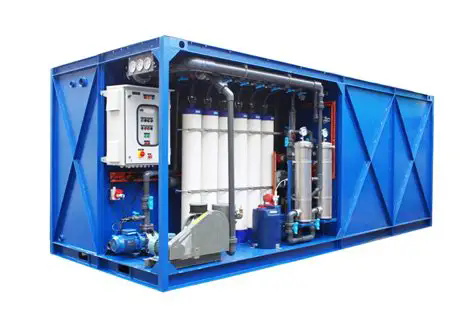

Containerized ETP

· Plug-and-play solution in shipping containers

· Quick deployment for remote or temporary sites

· Ideal for small to medium flow rates

---

Why Choose Our ETP Solution

· Single point of responsibility for the entire treatment plant

· Customized design based on your specific wastewater characteristics

· Reliable treatment to consistently meet discharge permits

· Energy-efficient aeration and pumping systems

· Low sludge production and easy sludge disposal

· Scalable design for future production expansion

---

Conclusion

Our turnkey effluent treatment plants protect the environment and keep your facility compliant with regulations. Whether you need a compact containerized unit or a large industrial ETP with zero liquid discharge, we provide a complete solution under one contract.

---
