FFU

Product features

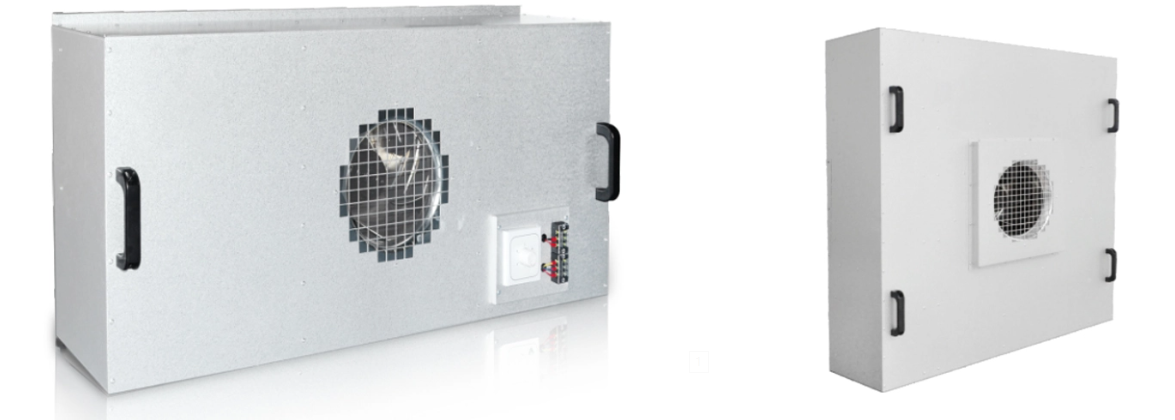

PuriFan AC FFU is a fan filter unit suitable for use in turbulence and laminar flow cleanrooms. It is highly flexible and can be installed in various ceiling frameworks and systems. Due to its unique design, low noise, reduced energy consumption, high efficiency, and little chemical gas dispersion of all components, the unit meets the usage requirement of some special fields.

Control system.

PuriFan AC FFU can be equipped with a five-gear speed controller, or the latest AIX-I computer-based intelligent controller to achieve flexible control.

Optional accessories

The  optional  accessories  include  air-inlet  primary-efficiency  filter,  air-outlet  diffuser,  differential  pressure  gauge,  online pressure monitor, online particle monitor,  DOP test hole, air-inlet tube, indicator, anemometer and online temperature and humidity monitor.

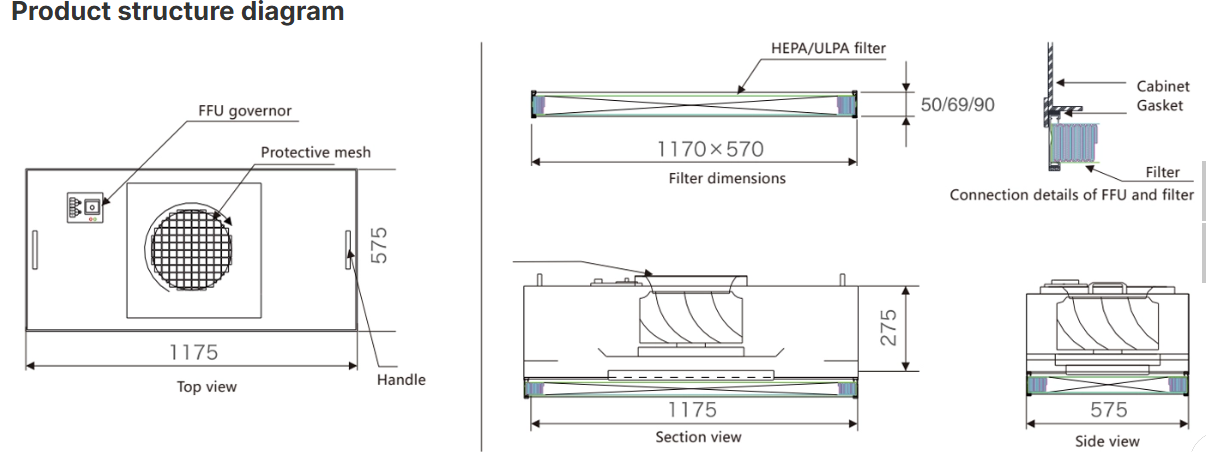

Special structural design

The professionally designed cabinet housing features a stable structure and high strength, which helps to avoid leakage and eliminate resonance when a number of FFUs are running simultaneously. The cabinet is made of stainless steel, which is compati-ble with disinfectant and ideal for disinfection equipment. Al-Zn coated steel plate or aluminum cabinet can also be used.

Additional primary-efficiency filters can be equipped.

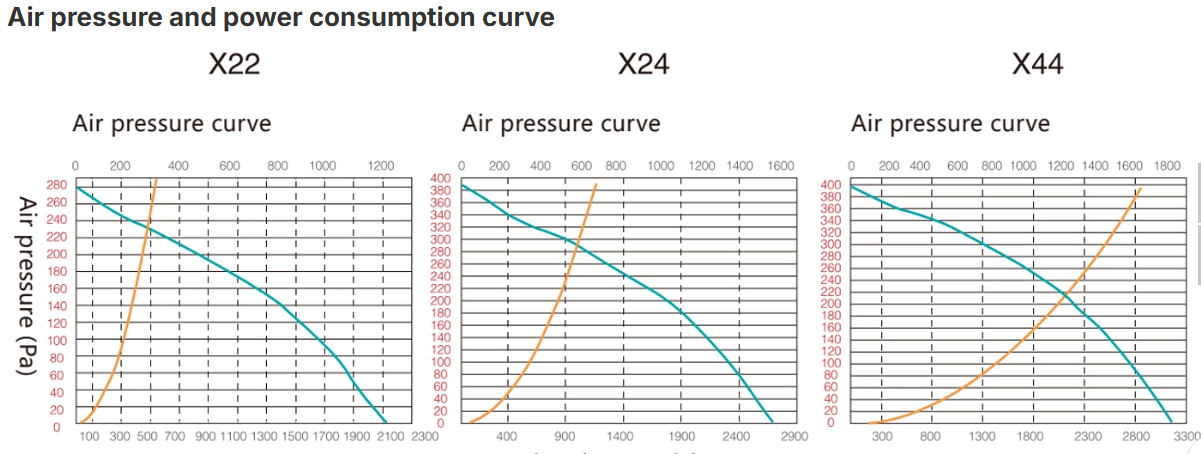

Higher total static pressure at maximum air volume

The use of the lower resistance puriCel II HEPA filter in combination with the high total static pressure of the fan can raise the external static pressure by 50-1 50pa.
