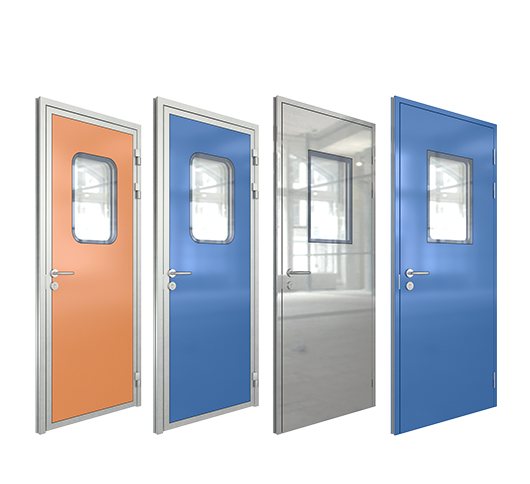

Cleanroom Door

Standard size900*2100/1200*2100/1500*2100 (non-standard can be customized)

Door opening direction Single door (left opening, right opening), son-mother door (left opening, right opening), double door

Door frame structure Flat frame type, wafer type

Material thickness Door frame: 1.5mm galvanized steel sheet; door leaf: 1.0mm galvanized steel sheet;

Thickness of door leaf Inside strengthening plate: 1.2mm galvanized steel plate (aluminum alloy and 1.2mm stainless steel can be selected for the door frame)

Door filler 50mm (the thickness of the door frame can be customized according to requirements)

Window on the door Flame retardant paper honeycomb, aluminum honeycomb, rock wool

Right-angle double-layer windows, rounded double-layer windows, double-layer windows outside and inside

Window standard size: 400*600mm; printing silk color: white or black;

Glass performance: 5mm tempered (fireproof optional); window built-in desiccant and filled with inert gas

Hardware Parts Lock body: split handle lock, one-piece handle lock, elbow pressure lock, escape lock, etc.

Hinge: 304 stainless steel detachable hinge

Door closer: exterior type, built-in type (the form can be divided into positioning and non-positioning)

Interlock: electromagnetic lock (external), electric mortise lock (embedded)

sealing strip Door leaf glue injection self-foaming sealing strip, lifting dust strip at the bottom of the door leaf

Surface treatmentElectrostatic spraying (color can be selected according to color card)
